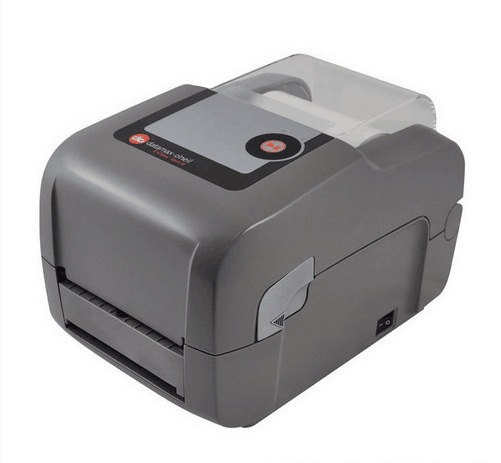

霍尼韦尔E-Class Mark III

易于使用的霍尼韦尔 E-Class™ Mark III 热敏式打印机以较低的持有和运行成本为您提供具有更高价格打印机的功能和可靠性。其可最大程度减少功耗和标签、碳带等打印机耗材的关联成本,从而极大减少您的日常运行成本,霍尼韦尔E-Class™ Mark III 系列入门级紧凑型台式热感打印机是市面上最具性价比的打印机之一,拥有与更昂贵的打印机相同的功能与可靠性。专门设计用于各种需要可靠廉价条码打印机的行业和应用场合。

首页 > 产品中心 > 条码打印机 > Honeywell条码打印机 > 正文

易于使用的霍尼韦尔 E-Class™ Mark III 热敏式打印机以较低的持有和运行成本为您提供具有更高价格打印机的功能和可靠性。其可最大程度减少功耗和标签、碳带等打印机耗材的关联成本,从而极大减少您的日常运行成本

霍尼韦尔E-Class™ Mark III 系列入门级紧凑型台式热感打印机是市面上最具性价比的打印机之一,拥有与更昂贵的打印机相同的功能与可靠性。专门设计用于各种需要可靠廉价条码打印机的行业和应用场合。


E-Class Mark III 已经过精心设计,能让您的投资价值实现最大化:性价比高,配有可供移动工作的电池组,具有可增强坚固性的双壁结构,采用久经考验的长期稳定性设计。


E-Class Mark III 打印机还易于使用。可快速更换介质,并具有互动式LCD 屏幕。由于 E-Class Mark III 的介质和色带卷容量更大,您还能大大减少日常运营成本。


规格概览:


打印头:热敏;可选热转印

有三种型号可满足您的连接需求:基础、高级、专业(详情请查看“规格”选项卡)

分辨率 – 8 点/mm (203 dpi);12 点/mm (300 dpi)

最大打印宽度:108 mm (4.25 in) @ 203dpi (8 点/mm); 106 mm (4.16 in) @ 300dpi (12 点/mm)

最大打印速度:152 mm/s (6 ips)

霍尼韦尔E-Class Mark III

霍尼韦尔E-Class Mark III技术参数:

Specifications

MECHANICAL

Dimensions
187 mm x 203.5 mm x 282 mm  (7.4 in x 8.01 in x 11.1 in)

Weight
2.4 kg (5.3 lbs)

Color
Pantone® warm gray

Construction:
Split case with rear concentric hinge; double-walled high-strength thermoplastic; clear wraparound media window

ENVIRONMENTAL

Operating Temperature
4°C to 35°C (40°F to 95°F )

OPTIONS


Bluetooth® v2.0 (Professional model only) Cutter w/Sensor Field (Not Available on Basic) High Resolution (300 dpi) Label (Peeler) Dispenser w/Sensor Field Thermal Transfer (Includes 1 in Ribbon Adaptors) Wireless LAN (Professional Model Only)

POWER SOURCE

Electric:
Auto-ranging power converter integration

ACCESSORIES


Auto-Loading Chute Battery Pack External Media (Large Roll) Holder External Rewinder

PRINT SPECIFICATIONS

Printer Type:
Direct thermal; optional thermal transfer

Print Length Range:
9.5 mm (0.375 in) to 2514 mm (99 in)

Color
Pantone® warm gray

Resolution
8 dots/mm (203 dpi)Optional 12 dots/mm (300 dpi)

MEDIA COMPATIBILITY

Media Type:
Label/Tag Roll

Width Range:
19 mm (0.8 in) to 112 mm (4.4 in)

Thickness Range:
0.06 mm (0.003 in) to 0.25 mm (0.01 in)

Winding:
Wound in or out

Ribbon:
Maximum outside diameter: 65 mm (2.6 in) Core diameters: 13 mm (0.5 in) or 25 mm (1 in) - requires provided adaptors M inimum core widths: 109 mm (4.3 in) for 0.5 in diameter or 25 mm (1 in) for 1 in diameter M aximum core width: 109 mm (4.3 in) Width range: 25 mm (1 in) to 109 mm (4.3 in) Winding: coated-side-in or coated-side-out

Index Sensor Range:
Transmissive (top and bottom sensor combination): gap, hole or notch: Basic: 5 mm (0.2 in) right of CL A dv/Pro: 42 mm (1.7 in) left of CL to 34 mm (1.3 in) right of CL Reflective (bottom sensor only) bar, hole or notch: Basic: 5 mm (0.2 in) right of CL, A dv/Pro: 58 mm (2.3 in) left of CL to 34 mm (1.33 in) right of CL For optimum print quality and printer performance, use certified Honeywell media supplies

AGENCY APPROVAL

Contact your Honeywell sales representative for the most recent list of agency approvals.

COMMUNICATION

Communication Ports (Standard):
Serial RS232, USB 2.0, Parallel Bi-directional, 10/100 BaseT Ethernet, USB Host

Communication Ports (Optional):
802.11 a/b/g, Bluetooth® v2.0

802.11 a/b/g:
Network standard: IEEE 802.11 a/b/g; wireless access modes: infrastructureand ad-hoc

Network Support:
DHCP, TCP/IP, UDP, DNS, BOOTP

WARRANTY

Standard Printer Warranty(When used with approved supplies):
1 year (including platen roller and installed options)

Standard Printhead Warranty(When used with approved supplies):
1 year or 25,400,000 mm (1,000,000 in), whichever comes first

Extended Warranty:
Contact your Honeywell sales representative for extended warranty options available through Honeywell Repair Services

SOFTWARE

NETira™ CT: Configuration tool; NETira™ RM: Remote Managment; NETira™ LD: Label Design Software; Drivers: Windows® XP, Windows® Vista, Windows® NT, Windows 7®, Windows 8 (32- & 64-bit)

Universal Printer Command Language Support:
PL-Z (Zebra), PL-B (Boca), PL-I (Intermec), PL-E (Eltron), XML-Enabled

Applications & Drivers
Windows® XP, Windows® Vista, Windows® NT, Windows 7®, Windows 8 (32- & 64-bit)

SUPPORTED BARCODE SYMBOLOGIES

Downloadable Font Types:
True-Type, AGFA® Intellifont™, Bitmap

Barcodes:
Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5 (I 2 of 5), Code 128, EAN-13, EAN-8, HBIC, Codabar, Interleaved 2 of 5 with a module 10 checksum, Plessey, Interleaved 2 of 5 with a module 10 checksum & shipping bearer bars, 2-digit UPC addendum, 5-digit UPC addendum, Code 93, Postnet, UCC/EAN Code 128, Telepen; 2D Symbologies: UPS MaxiCode, FIM, PDF-417, DataMatrix, QR Code, Aztec, Code 128 with auto Subset Switching, GS1 Databar (replaced RSS), TCIF Linked Bar Code 3 of 9 (TLC39), MicroPDF 417

Resident Fonts
Ten alphanumeric fonts from 2 (0.08 in) mm to 6 mm (0.25 in) including OCR-A, OCR-B, CG Triumvirate™ smooth font from AGFA®

Character Sets
Modified IBM® Code Page 850; includes characters for English and most European, Scandinavian and Spanish-speaking countries; 50 Resident Code Pages

Font Expansion/Rotation:
All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°

Graphics Supported:
pcx, .bmp, .img format files

Reversible Field/Mirror Image:
Any font or graphic field can be printed as a normal or reverse image
